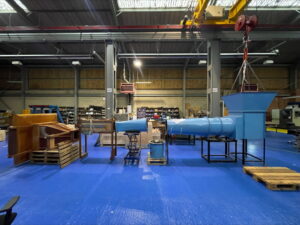

Used Low Speed Wind Tunnel for Sale

Must be sold by the end of January 2025

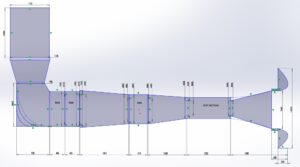

  • Overall length = 7.535m
  • Test section = 300mm x 300mm x 1230mm long
  • 6:1 contraction ratio
  • Estimated maximum test section airspeed - 30 to 40m/s (subject to test)
  • 3 Woods Air Movement Axial flow fans
  • This wind tunnel is estimated to be at least 40 years old. Its history is unknown but is most likely to have come from a university.
  • The 3-fan configuration suggests that the 450 mm diameter fan drives the airflow through the test section, whilst the additional 2-630mm fans coupled in tandem are there to maintain the airflow and overcome the pressure drop/resistance of the silencers which are mounted in the vertical.
  • The component parts can be purchased as a complete lot:- POA.
  • Or, ATE can offer to install and commission. This will involve undertaking necessary refurbishment.
  • The refurbishment would consist of:
  • New basic control system
  • New variable speed drive(s)
  • New test section
  • Optional additional test equipment.
  • A quotation can be supplied for the cost of this after the agreement for the desired scope of work.

Please contact our sales team for more details:

+44 1435 865 245

sales@ate.co.uk
